綜合手術床IMAGE DETAILS


1. Technical parameters:

Project

Parameters

Total length

2100±20 mm;

 Table panel width

500±20 mm;

Minimum height

700±20 mm;

Lift stroke

(300±20) mm

Head section

Removable, fold up 45o±2  and down 90o±2°

Dorsal section

Top fold 70o±2, bottom fold 18o±2°;

Leg plate

Split-legged, removable, top fold 20°, bottom fold 90°, horizontal abduction 90°

Waist bridge (Central pelvic section)

mechanical drive, Lift stroke ≥120mm

Longitudinal tilt

Head tilt down: 20°±2°

Foot tilt down: 30°±2°

Roll Angle

Left roll: 20°±2°

Right roll: 20°±2°

Front and back pan stroke

300±20mm

Flex/reflex positions

210°/70°

 load capacity

200kg

2. Product Introduction:

This product is used in hospital operating room for head, neck, chest and abdominal, perineum and limbs surgery and obstetrics and gynecology, ophthalmology, ENT, orthopedics and other operations.

3. The product has unique advantages:

   1). The Angle adjustment of the backplane and leg plate of the comprehensive operating table is realized by the hand-operated worm, gear and rack mechanism.   2). The table and cover material can be selected according to user needs of high-quality cold-tied carbon steel spray or advanced stainless steel.   3). The use of oil pump hydraulic lifting, the required position adjustment during the operation are manipulated on both sides of the table.   4). With translation function.

4. Basic configuration list:

Serial Number

Accessory name

Quantity

Units

1

Operating table bed body

1

Set

2

Mattress

1

Set

3

Hand fixator (1 pair):

1

set

4

Arm support with mattress (1 pair)

1

set

5

Torso and leg fixator:

1

set

6

Side support

1

set

7

Support roller, horizontal:

1

set

8

Support roller, vertical:

1

set

9

iliopsoas roller:

1

pcs

10

Height-adjustable anesthesia shield.

1

set

11

Arm support for lateral position.

1

set

12

Patient transfer device (rollboard)

1

pcs

13

Product Certificate/Warranty card/receipt

1

Set

14

Instruction manual

1

Set




< >

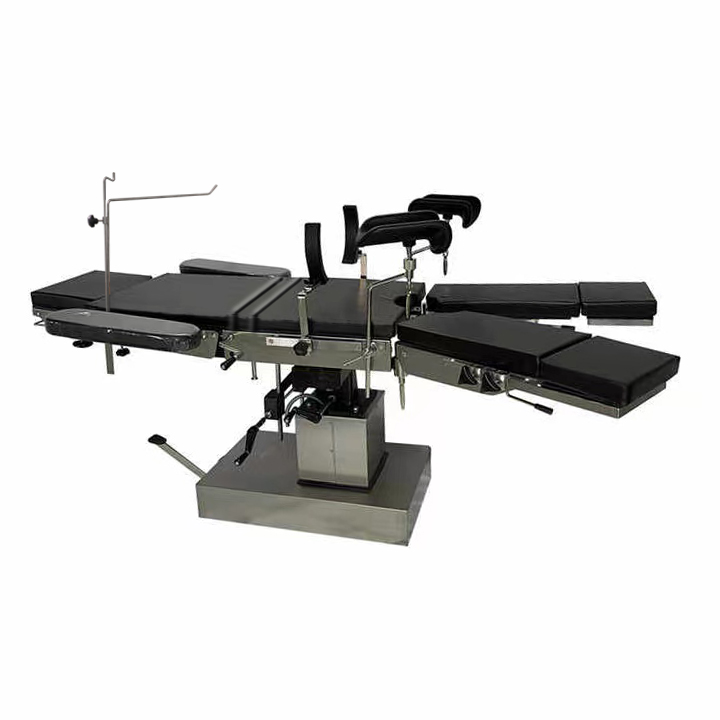

SST-IV comprehensive operating table以人因本、朋友高于一切、建立精典
